Showcasing Innovation at Multotec: H-Pins

This innovation was developed by Zelda Zonneveld Junior Draughtsperson, Multotec Manufacturing, TCS.

Problem statement:

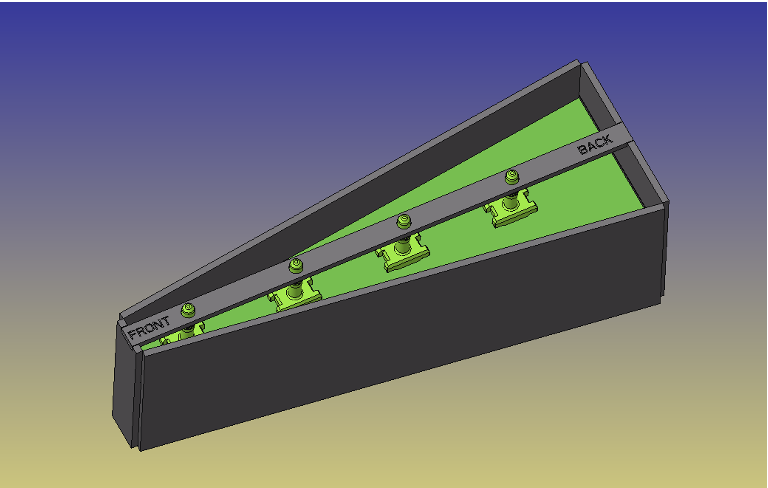

The old casting aid for the Fishtail featured a base that incorporated H-Pin cut-outs wire. With the new Fishtail casting aid, we only need a flat bar to locate the pinning and 10 mm THK PU blocks that can be placed under the steel to lift it off the table.

Read about a Multotec innovation to H-Pins. Description of innovation:
We are saving on cost and time by not having to make a new base with the machining and wire cutting of the H-Pins. In addition, we no longer need to make a different base each time we have a different pinning requirement.

Cost saving:
Cost to implement R2 390.00
Cost of old casting aid ± R7 500.00
Saving: R5 115.00
